TV BACKLIGHT Use For Samsung/Vestel/Arcelik LED Backlight Strips

TV Backlight Use for Samsung/Vestel/Arcelik LED Backlight Strips

Name: China TV Backlight Use for Samsung/Vestel/Arcelik LED Backlight Strips Manufacturers Suppliers Factory
Brand: Eastern Star
SKU: 242639285

ES Model: ES-038/6 ES-038/7
Brands: use for Samsung/Vestel/Arcelik/Grundig/Toshiba
Complete Set: 1SET=2*7LEDs+1*6LEDs
Length: 590MM

Send Inquiry

Products Description

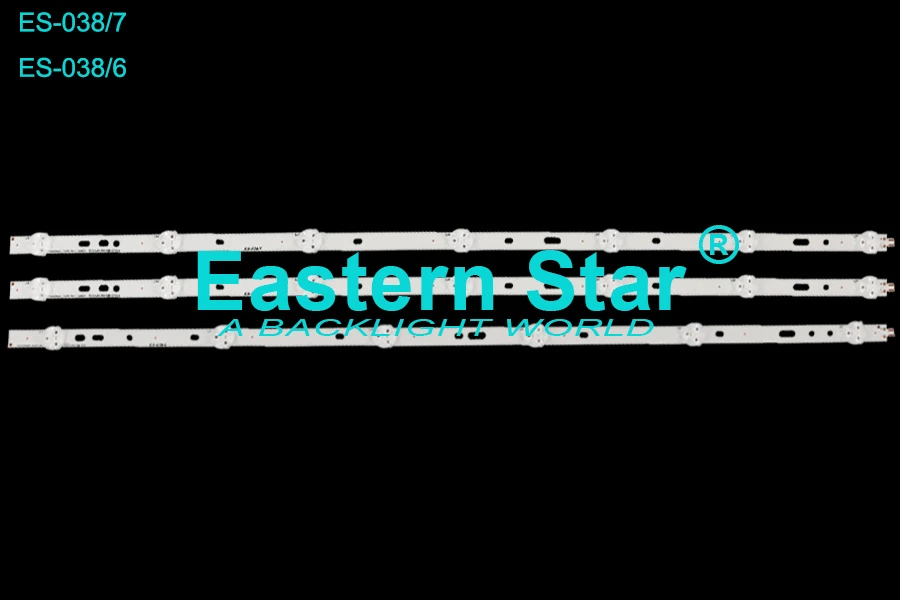

ES-038 TV BACKLIGHT use for Samsung/ Vestel/ Arcelik 32'' SVS320AD7_6LED+7LEDs LED Backlight Strips (3)

ES Model: ES-038/6 ES-038/7
Brands: use for Samsung/Vestel/Arcelik/Grundig/Toshiba
Complete Set: 1SET=2*7LEDs+1*6LEDs
Length: 590MM
Original Code: SVS320AD7_6LED_RE.1_120621
SVS320AD7_7LED_RE.1_120621
Panel Sticker Number: LTA320AP33
TV Models: /
Use for Samsung/ Vestel/ Arcelik: SVS320AD7/ UE32F5000/ UE32F5000AK/ UE32F5300/ UE32F5500
Use for Grundig: 32VLE5304GB
Use for Toshiba: 32W1333B LTA320AP33 A32-LB-4210, 32VLE4302BF/ A32LB5313/ 32BLE4304BF/ UE32F65000AK

About Chuzhou Eastern Star

Focus on one thing for 10 years

Focus on LED light strip lighting - never stop innovating

10 years of experience in LED light strips has created a deep-rooted craftsmanship spirit.
Oriental Star has always regarded quality and innovation as its core competitiveness, using the iS09001 quality control process throughout the process to provide customers with professional, high-quality, safe and reliable LED light strip products. After years of deep cultivation in the industry, it has provided professional LED lighting solutions support to many domestic and foreign customers.

Production Processes

Lamp brightness, color temperature, wavelength test

Lamp Bead Baking (Dehumidification)

PCB short circuit, broken circuit detection

Solder Pad
Automatic tin brushing

SMT
High-speed patch

Lead-Free
Reflow soldering (overfurnace)

Detection and maintenance of cold soldering and dead light

12 hours
High temperature aging

Waterproofing work (pre-work test)

QC Quality Inspection

Finished product packaging and storage

Since we are manufacturer of LED TV backlight strip, we can provide you with the most suitable customized service.

Professional customization of your own LED light bar

Size customization

Color customization

Color temperature customization

Material selection

Process selection

Strength manufacturer, customized on demand, fast sample!

Sales Negotiation

Proofing

Production

Inspection

Packing

Shipment

Related questions you may want to know

Q: Is there any difference between Samsung TV's LED TV backlight and other brands?

A: The differences between Samsung's LED TV backlighting and that of other brands can be subtle and depend on several factors. Here are some key points to consider:

1. Technology

● Samsung: Known for its use of advanced Quantum Dot technology in its QLED TVs, which enhances color accuracy and brightness. Samsung's LED backlighting is often paired with this technology to improve overall picture quality.

● Other Brands: Different brands may use various proprietary technologies and enhancements. For example, LG uses OLED technology in some models, which differs fundamentally from LED backlighting as it involves self-emissive pixels.

2. Backlighting Techniques

● Edge-Lit LED: Commonly used by many brands, including Samsung. LEDs are placed along the edges of the screen, which can result in a thinner TV but may have issues with uniform brightness.

● Direct/Full-Array LED: Used by higher-end models from various brands, including Samsung. LEDs are placed behind the entire screen, providing better brightness uniformity and local dimming capabilities.

● Mini-LED: An emerging technology where smaller LEDs are used for better precision and contrast. Samsung and other brands like TCL are adopting this technology.

3. Local Dimming

● Samsung: Often uses advanced local dimming technologies, particularly in higher-end models. This helps in improving contrast by dimming specific areas of the screen.

● Other Brands: The quality and effectiveness of local dimming can vary. Brands like Sony and LG also have sophisticated local dimming systems in their premium models.

4. Color Accuracy and Brightness

● Samsung: With Quantum Dot technology, Samsung TVs generally offer excellent color accuracy and high brightness levels.

● Other Brands: Brands like Sony, with their TRILUMINOS display technology, and LG, with their NanoCell technology, also focus on enhancing color accuracy and brightness.

5. Software and Processing

● Samsung: Uses its own Tizen OS and proprietary image processing algorithms to enhance picture quality.

● Other Brands: Sony uses Android TV with its X-Reality Pro and other processing technologies, while LG uses webOS with its Alpha processors to enhance image quality.

Summary While the core technology of LED backlighting is similar across brands, the differences lie in the implementation of additional technologies (like Quantum Dots for Samsung), backlighting techniques (edge-lit vs. full-array), and software processing. The overall viewing experience can vary based on these factors, as well as brand-specific enhancements.

Q: Emergency repair tips for LED TV backlight failure

A: The LED TV backlight is not bright, which is one of the common faults. Here are some emergency repair tips to solve this problem. 1. Check the power cord and socket:

1. Make sure that the TV power cord plug is well connected to the socket. If it is loose or in poor contact, replug the power cord to ensure a firm connection.

2. Check the backlight power supply board: The backlight power supply board is a key component that provides power to the backlight. Check whether the connection wires on the power supply board are loose or damaged. If there is a problem, you can try to reconnect or replace the power supply board.

3. Check the backlight bar: The backlight bar is a component of the backlight and is responsible for providing the light source of the display. Check whether the backlight bar is damaged, broken or short-circuited. If there is a problem, you need to replace the backlight bar.

4. Check the backlight driver board: The backlight driver board is an important component that controls the brightness of the backlight. Check whether the connection wires on the driver board are loose or damaged, and you can also try to reconnect or replace the driver board.

5. Adjust the backlight brightness: Sometimes, the backlight brightness may be adjusted too low, resulting in a difficult to see screen. Try adjusting the backlight brightness through the remote control or the TV's menu settings to see if that solves the problem.

6. Ask a professional for repair: If none of the above methods solve the problem, it is recommended to contact a professional TV repairman for inspection. They can use professional equipment and technology to diagnose and repair the fault.

The above are some emergency repair tips to solve the problem of LED TV backlight not lighting up. Hope it helps you!

Q: Reasons and solutions for insufficient TV brightness

A: I. Insufficient brightness of the screen backlight

If the backlight brightness of the TV screen is insufficient, the screen display will appear darker, thus affecting the viewing effect. The solution to this situation is to increase the backlight brightness appropriately to improve the screen brightness. It is also recommended that when using the TV in a dark environment will be backlit high, daytime use can be appropriately lowered, which not only improves the viewing effect, but also saves energy.

II. Improper grayscale adjustment

TV grayscale adjustment is to adjust the degree of change in the gray stage between black and white. If the gray scale is not properly adjusted, the picture of the TV will appear gray, lack of hierarchy. Therefore, the gray scale should be properly adjusted to increase the brightness and clarity of the picture.

III. The color temperature is not set appropriately

Color temperature is the color temperature of the screen display, color temperature is too low or too high will lead to image color distortion, the feeling of insufficient brightness. The solution is to adjust the color temperature according to the viewing environment, such as in the white light environment, choose a higher color temperature can increase the screen brightness, improve the viewing effect.

IV. Lamp bead damage or aging

The lamp beads used in TVs have a life span and degree of wear and tear, and excessive use will lead to a decrease in lamp bead brightness, or even a lack of brightness. Therefore, if other methods have not solved the problem, you can consider turning the TV on, check whether the brightness of the lamp bead is obviously insufficient or the lamp bead has been damaged and needs to be replaced.

In summary, the reason for insufficient brightness of the TV set may be insufficient brightness of the screen backlight, improper gray scale adjustment, inappropriate color temperature settings, lamp bead damage or aging, etc., you can take appropriate measures to solve the problem according to the specific circumstances.

Q: The difference between LED TV and LCD TV

A: The difference between LED TV sets and LCD TV sets mainly lies in the type of backlight, color performance, energy saving and environmental protection, as well as product appearance. The following is a specific description of these differences:

1. Backlight type:

LCD TV: usually use cold cathode fluorescent tubes (CCFL) as the backlight source, through the fluorescent material to convert electrical energy into light energy.

LED TVs: are actually LCD TVs that use LEDs as the backlight source. the LEDs can directly convert electrical energy into light energy without passing through fluorescent substances.

2. Color performance:

LCD TV: color performance has been quite good, but limited by the CCFL backlight color gamut range.

LED TV: Because the LED backlight has a wider color gamut, the color performance is richer and more vivid, and the picture is more realistic and natural.

3. Energy saving and environmental protection:

LCD TV: Compared with CRT (cathode ray tube) TV has greatly reduced energy consumption, but compared to LED TV still has a certain gap.

LED TV: LED backlight has a higher luminous efficiency, so LED TV energy consumption is lower, more in line with the requirements of energy saving and environmental protection.

4. Product appearance:

LCD TV: the body may be relatively thick, limited by the backlight technology and structural design.

LED TV: the body can be thinner and lighter, because the LED backlight allows for a more compact design, and the LED lamp beads can be evenly distributed behind the screen, reducing the need for thickness.

It should be noted that many of the so-called "LED TVs" on the market are actually LCD TVs with LED backlighting, and therefore still technically belong to the category of LCD TVs. However, LED TV as an improved LCD TV, its backlight technology makes the TV in the color performance, energy saving and environmental protection and product appearance and other aspects relative to the traditional LCD TV has advantages.
